Park, Kim, Jung, and Chung: Heterotopic Pancreas in Omphalomesenteric Duct Remnant Results in Persistent Umbilical Discharge
Umbilical discharge in infancy is a common pediatric problem and usually attributed to infection or an umbilical granuloma. However, it is important to investigate if such discharge is due to an underlying congenital abnormality such as umbilical hernia ulceration, urachal remnant, or omphalomesenteric duct remnant, because corrective surgical intervention may then be required. Omphalomesenteric duct remnant can cause umbilical discharge generally through patency between the gut and umbilicus. However, though rare, umbilical discharge may be due to the presence of heterotopic pancreas. The prevalence of omphalomesenteric duct remnant is only 2% of the population, and most of them remain asymptomatic. The present case is an infant with persistent umbilical discharge caused by heterotopic pancreatic tissue in a remnant omphalomesenteric duct. To the best of our knowledge, this is the first such case report in Korea.


A 3-month-old female infant presented with persistent umbilical discharge since birth. The infant was born through normal vaginal delivery following an uneventful gestational period and had no congenital anomalies. She had been gaining weight well and had no family history of genitourinary or gastrointestinal problems. Ultrasonography of the abdomen revealed an iso-echoic tract posterior to the umbilicus, and the diagnosis of urachal remnant was suspected. On physical examination, small droplets of clear fluid constantly discharged from a normal-looking umbilicus. Laboratory examination results were within normal limits. Under general anesthesia, an incision was made below umbilicus. Surgical exploration showed a fibrous sinus posterior to the umbilicus which was attached to the inner aspect of the umbilicus and the outer wall of the ileum by a fibrous band. Fibrous tissue was excised close to both ends, and the rest was ligated by suture tie. The excised specimen was a 7×6×5-mm-sized whitish fibrous tissue. Histologically, the excised specimen included pancreatic tissue with some small intestinal mucosa and fibrous extracellular components (Fig. 1). Both exocrine and endocrine pancreatic tissues were observed, including acini, ducts, and islets of Langerhans. Acini were separated into lobules by connective tissue. Intercalated ducts were lined by simple low cuboidal epithelium (Fig. 2). The patient was discharged without any postoperative complications and is currently alive without any sequelae.


The omphalomesenteric duct is a long narrow tube that connects the yolk sac to the midgut lumen of the developing fetus. It normally regresses during the 5th to 9th weeks of fetal development, but a part or all of it may persist postnatally and result in various abnormalities including a Meckel's diverticulum, an umbilical fistula, an omphalomesenteric duct cyst, an umbilical sinus, or an umbilical polyp. Meckel's diverticulum often contains heterotopic gastric or pancreatic mucosa which can result in some clinical manifestations such as massive rectal bleeding. However, heterotopic tissue in other types of remnant omphalomesenteric duct which present on the umbilicus has been rarely reported. To our knowledge, there have been 13 cases of heterotopic pancreatic tissue in the umbilicus (Table 1).1,2,3,4
Various explanations have been offered for heterotopic pancreas in the umbilicus, but there is no universally accepted theory about the cause of this aberrant tissue.5 The three influential pathogeneses include misplacement theory,6 in which embryonic tissue is located in an inappropriate place and develops into mature pancreatic tissue; metaplasia theory,7 stating that endodermal tissues migrate to the submucosa during embryogenesis and transform into pancreatic tissue; and the totipotent cell theory,8,9 in which totipotent endodermal cells lining the gut or omphalomesenteric duct differentiate into pancreatic tissue. The misplacement theory proposes that, during rotation of the foregut, several elements of the primitive pancreas become separated and eventually form mature pancreatic tissue along the length of the gastrointestinal tract. In this theory, the heterotopic rests are prone to drop off from the dorsal primordium and develop in the distal part of the stomach and proximal part of the duodenum, the most common sites of heterotopic pancreas. While it cannot explain other rarely discovered locations of heterotopic pancreas such as Meckel's diverticulum, ampulla of Vater, gallbladder, umbilicus, fallopian tube, and mediastinum, the totipotent cell theory is quite reliable for heterotopic pancreas in omphalomesenteric duct remnant because the cells lining the omphalomesenteric duct are known to pluripotent and can express either gastric, pancreatic, hepatic, or other terminal endoderm-derived phenotypes. While normal tissue is under the restriction to differentiate into certain cell types, tissue in this case seems to escape the normal restriction to maintain its pluripotent ability.
Because preoperative diagnosis is still a challenge, primary treatment for umbilical discharge is silver nitrate application. However, if symptoms are persistent despite this intervention, other differential diagnoses like patent urachus and omphalomesenteric duct remnant should be considered for early and relevant management. If heterotopic tissue is present, as in the presented case, severe local excoriation can occur and may lead to severe complications when not treated appropriately. Limited local excision has been shown to be a safe and adequate procedure to address this affliction. Awareness of this finding in biopsy can aid with appropriate treatment decisions for the patient.


No potential conflict of interest relevant to this article was reported.


1. Harris LE, Wenzl JE. Heterotopic pancreatic tissue and intestinal mucosa in the umbilical cord. Report of a case. N Engl J Med 1963; 268: 721–722. PMID: 13952938.
crossref pmid
2. Avolio L, Cerritello A, Verga L. Heterotopic pancreatic tissue at umbilicus. Eur J Pediatr Surg 1998; 8: 373–375. PMID: 9926310.
crossref pmid
3. Lee WT, Tseng HI, Lin JY, Tsai KB, Lu CC. Ectopic pancreatic tissue presenting as an umbilcal mass in a newborn: a case report. Kaohsiung J Med Sci 2005; 21: 84–87. PMID: 15825694.
crossref pmid
4. Sharma S, Maheshwari U, Bansal N. Ectopic pancreatic, gastric, and small intestine tissue in an umbilical polyp, causing persistent umbilical discharge in a 2 year old child: a rare case report. J Evol Med Dent Sci 2013; 2: 447–451.
5. Armstrong CP, King PM, Dixon JM, Macleod IB. The clinical significance of heterotopic pancreas in the gastrointestinal tract. Br J Surg 1981; 68: 384–387. PMID: 7237066.
crossref pmid
6. Chandan VS, Wang W. Pancreatic heterotopia in the gastric antrum. Arch Pathol Lab Med 2004; 128: 111–112. PMID: 14692822.
7. Gupta MK, Karlitz JJ, Raines DL, Florman SS, Lopez FA. Clinical case of the month. Heterotopic pancreas. J La State Med Soc 2010; 162: 310–313. PMID: 21294486.
8. Baysoy G, Balamtekin N, Uslu N, Karavelioğlu A, Talim B, Ozen H. Double heterotopic pancreas and Meckel's diverticulum in a child: do they have a common origin? Turk J Pediatr 2010; 52: 336–338. PMID: 20718198.
9. Bossard P, Zaret KS. Repressive and restrictive mesodermal interactions with gut endoderm: possible relation to Meckel's diverticulum. Development 2000; 127: 4915–4923. PMID: 11044405.
Fig. 1
Pancreatic tissue (upper and lower) with some small intestinal mucosa (middle) and fibrous extracellular components.
Fig. 2
Acini are separated into lobules by connective tissue, and intercalated ducts are lined with simple low cuboidal epithelium. Pancreatic tissue including acini, ducts, and islets of Langerhans (A). Expression of chromogranin (B), synaptophysin (C), and neuron-specific enolase (D) in islets of Langerhans.

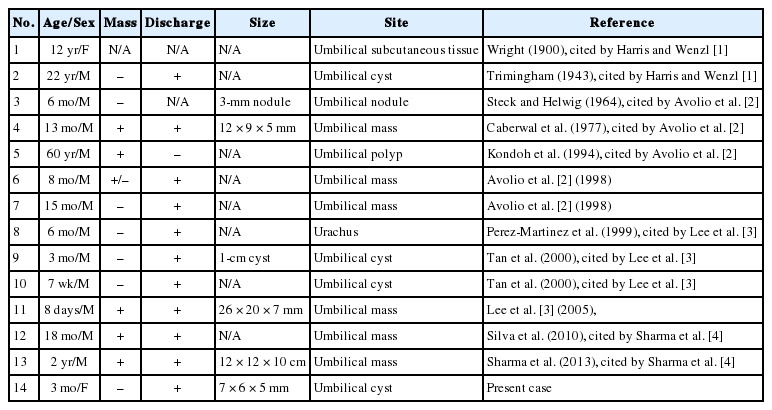

Table 1.
Cases of heterotopic pancreatic tissue at the umbilicus reported in the English literature
No. Age/Sex Mass Discharge Size Site Reference
1 12 yr/F N/A N/A N/A Umbilical subcutaneous tissue Wright (1900), cited by Harris and Wenzl [1]
2 22 yr/M + N/A Umbilical cyst Trimingham (1943), cited by Harris and Wenzl [1]
3 6 mo/M N/A 3-mm nodule Umbilical nodule Steck and Helwig (1964), cited by Avolio et al. [2]
4 13 mo/M + + 12 × 9 × 5 mm Umbilical mass Caberwal et al. (1977), cited by Avolio et al. [2]
5 60 yr/M + N/A Umbilical polyp Kondoh et al. (1994), cited by Avolio et al. [2]
6 8 mo/M +/– + N/A Umbilical mass Avolio et al. [2] (1998)
7 15 mo/M + N/A Umbilical mass Avolio et al. [2] (1998)
8 6 mo/M + N/A Urachus Perez-Martinez et al. (1999), cited by Lee et al. [3]
9 3 mo/M + 1-cm cyst Umbilical cyst Tan et al. (2000), cited by Lee et al. [3]
10 7 wk/M + N/A Umbilical cyst Tan et al. (2000), cited by Lee et al. [3]
11 8 days/M + + 26 × 20 × 7 mm Umbilical mass Lee et al. [3] (2005),
12 18 mo/M + + N/A Umbilical mass Silva et al. (2010), cited by Sharma et al. [4]
13 2 yr/M + + 12 × 12 × 10 cm Umbilical mass Sharma et al. (2013), cited by Sharma et al. [4]
14 3 mo/F + 7 × 6 × 5 mm Umbilical cyst Present case

F, female; N/A, not available; M, male; +, present; –, absent.
