Solitary Myofibroma of the Adult Mandible: A Case Report and Review of Literature
Skip Navigation
Skip to contents

J Pathol Transl Med : Journal of Pathology and Translational Medicine

OPEN ACCESS
SEARCH
Search

Articles

Page Path
HOME > J Pathol Transl Med > Volume 48(4); 2014 > Article
Brief Case Report
Solitary Myofibroma of the Adult Mandible: A Case Report and Review of Literature
Yong-Moon Lee, Seung-Myoung Son, Kyoung Won Kim1, Ok-Jun Lee
Korean Journal of Pathology 2014;48(4):307-310.
DOI: https://doi.org/10.4132/KoreanJPathol.2014.48.4.307
Published online: August 26, 2014

Department of Pathology, Chungbuk National University College of Medicine, Cheongju, Korea.

1Department of Oral and Maxillofacial Surgery, Chungbuk National University College of Medicine, Cheongju, Korea.

Corresponding Author: Ok-Jun Lee, M.D. Department of Pathology, Chungbuk National University College of Medicine, 52 Naesudong-ro, Heungdeok-gu, Cheongju 361-763, Korea. Tel: +82-43-269-6260, Fax: +82-43-269-6269, 'ok5218@hanmail.net'
• Received: August 30, 2013   • Revised: September 26, 2013   • Accepted: September 27, 2013

© 2014 The Korean Society of Pathologists/The Korean Society for Cytopathology

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

  • 6,254 Views
  • 58 Download
  • 10 Crossref
  • 6 Scopus
Myofibroma is a rare benign neoplasm of myofibroblastic cells that can occur in either a solitary or multicentric form. Both forms were described as infantile myofibromatosis because of its multiplicity, typical age distribution (first decade of life), and frequent involvement of deep structures, including the central nervous system and visceral organs such as lung, heart, gastrointestinal tract, liver, kidney, and pancreas.1 In contrast to the multicentric form, solitary myofibroma usually presents as a cutaneous or subcutaneous mass of the head and neck region.2 Intraosseous lesions are much less common, although three studies in 1995 and one in 2000 reported the mandible as a frequent oral site (16 of 36 [or 44%],3 15 of 35 [or 42.6%],4 and 30 of 79 [or 38.0%]).5 Solitary myofibroma of the adult mandible, however, is extremely rare, and only four cases exist within the literature.6 The case of a 31-year-old woman with a symptomless solitary myofibroma arising in the mandible is discussed here. To the best of our knowledge, this is the first report of a solitary myofibroma arising in the adult mandible in Korea.
A 31-year-old woman was referred to the Department of Oral and Maxillofacial Surgery, Chungbuk National University Hospital, with a radiolucent lesion in the right mandible that had been noticed by a general dentist during routine check-up. She had not felt any discomfort and had been completely unaware of the lesion. An examination did not detect any recognizable abnormalities, such as mucosal bulging, local tenderness, tooth mobility, or palpable lymph nodes. An orthopantomogram and a facial bone computed tomography revealed a 2.5-cm-sized cystic lesion in the right mandibular alveolar process that formed the root of the first molar (Fig. 1A).
During surgery, a 2.5-cm-sized solid mass arising in the right first molar root was found in the mandibular process. After removing the right first molar tooth, the mass was enucleated along with a 1 to 2 mm margin of normal-appearing bone. The mass was well-circumscribed, did not adhere to the surrounding tissue, and had a rubbery consistency (Fig. 1B).
Microscopic examination revealed a well-defined round mass that consisted of mainly spindle cells and a relatively small portion of round-shaped cells with an ambiguous biphasic pattern intermingled with cleft-like angulated vascular spaces (Fig. 2A). The myoid spindle cells were arranged in interlacing fascicles and had blunt-ended or tapered nuclei with a relatively dense eosinophilic cytoplasm (Fig. 2B). When Masson's trichrome stain was done, the tumor revealed considerable collagenous stroma intermixed with the myofibroblastic cells (Fig. 2C). Immunohistochemistry revealed that the spindle cells were positive for smooth muscle actin (SMA; 1:150, Leica, Newcastle upon Tyne, UK), which had a strong, diffuse, and unequivocal distribution (Fig. 3A). As the tumor had a hemangiopericytoma-like vascular pattern, staining for CD34 (1:200, Thermo Fisher Scientific, Waltham, MA, USA) was also performed. Although the tumor was negative for this antigen, prominent slit-like blood vessels were revealed (Fig. 3B). In addition, the tumor cells did not exhibit immunoreactivity to S100 (1:800, DAKO, Glostrup, Denmark), CD117 (1:500, DAKO), human melanoma black 45 (1:100, Leica), estrogen receptor (1:50, Leica), or progesterone receptor (1:200, Leica). The Ki-67 (1:50, DAKO) proliferation index was approximately 1% throughout the tumor, which indicates a very low proliferative nature. To differentiate the myofibroma from smooth muscle tumor, desmin (1:100, Leica), h-caldesmon (1:100, DAKO), and vimentin (1:200, DAKO) stains were done; the tumor showed strong positivity for vimentin only (Fig. 3C). Based on the above findings, the diagnosis of an intraosseous myofibroma was made.
Myofibroma and myofibromatosis are rare benign mesenchymal neoplasms composed of contractile myofibroblastic cells arranged around thin-walled blood vessels with a predilection for the head, neck, and perioral structures.1 In the WHO Classification of tumours of soft tissue and bone revised in 2013, myofibroma was classified as a perivascular tumor, as well as angioleiomyoma.1
Radiologic feature of myofibroma involving the mandible is a radiolucent lesion, of which 70% are unilocular and 30% are multilocular with a well-defined border. Microscopically, myofibroma is a nodular, well-circumscribed neoplasm, characterized by biphasic growth of 1) immature-appearing, plump, spindled tumor cells showing oval nuclei and scant cytoplasm with numerous thin-walled, branching hemangiopericytoma-like vessels; and 2) more mature spindled tumor cells that possess eosinophilic cytoplasm and elongated, blunt-ended or tapered nuclei, arranged in bundles or whorls. Tumor cells are often set in a collagenous stroma with characteristic myxohyaline changes. Mitoses are variable in number; especially in immature-appearing tumors, numerous mitoses as well as areas of necrosis may be present.4 Myofibroma should be differentiated from leiomyoma, neurofibroma, nodular fasciitis, hemangiopericytoma, and fibrosarcoma due to their macroscopic and microscopic similarites.2,6,10
Because myofibromas are composed of cigar-shaped spindle cells that both resemble smooth muscle tumor and stain positive for SMA, myofibromas may easily be misdiagnosed as smooth muscle tumor.6 Moreover, due to its rarity, myofibromas may be missed by general surgical pathologists in the differential diagnosis of tumors arising in the mandible.
As both leiomyoma and myofibroma show immunoreactivity for SMA, immunohistochemical evaluation should be used to support the diagnosis of myofibroma. The myoid spindle cells of myofibroma are more likely to be immunoreactive for SMA and vimentin than the spindle cells of leiomyoma; the spindle cells in myofibroma are negative for desmin and caldesmon, whereas the spindle cells in leiomyoma are positive for the two markers. In addition, myofibroma and smooth muscle tumors demonstrate different characteristic patterns in Masson's trichrome stain; myofibroma is composed of much more collagenous stroma intermixed with the spindle cells than smooth muscle tumor is.10
Myofibroma of the mandible is a tumor typically occurring in children (mean, 7.2 years; median, 6 years), usually in the first decade of life, with definite male predominance (male:female ratio, 2.3:1). However, solitary myofibroma of the adult mandible is extremely rare with only four cases having been reported.6 The age of presentation ranged from 20 to 43 years (mean, 32 years; median, 32 years) with striking female predominance (male:female ratio, 1:4), as was seen in our case (Table 1).
The recurrence rates for myofibromas are quite low, ranging from 0% to 12.5%. Recurrences can be attributed to tumors with difficult surgical access or incomplete removal. Smaller lesions can regress spontaneously, and observation might be warranted in those cases.
In summary, solitary myofibroma of the adult mandible is exceedingly rare, and surgical excision is the treatment of choice as recurrence is uncommon after complete resection. Owing to their similarities of individual cell morphology and general architecture, smooth muscle tumor can be one of the most difficult differential diagnoses. Therefore, use of appropriate immunohistochemical markers for smooth muscle differentiation, such as desmin and h-caldesmon, is recommended. Awareness of myofibroma arising in the mandible also may lower the possibility of misdiagnosis.

No potential conflict of interest relevant to this article was reported.

  • 1. Fletcher CD, Bridge JA, Hogendoorn P, Mertens F. WHO classification of tumours of soft tissue and bone. 4th ed. Lyon: IARC Press, 2013; 119–120.
  • 2. Kim MJ, Lee SH, Youk EG, Lee S, Choi JH, Cho KJ. Solitary myofibroma of the sigmoid colon: case report and review of the literature. Diagn Pathol 2013; 8: 90PMID: 23742153. ArticlePubMedPMCPDF
  • 3. Lingen MW, Mostofi RS, Solt DB. Myofibromas of the oral cavity. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 1995; 80: 297–302. PMID: 7489273. ArticlePubMed
  • 4. Sugatani T, Inui M, Tagawa T, Seki Y, Mori A, Yoneda J. Myofibroma of the mandible: clinicopathologic study and review of the literature. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 1995; 80: 303–309. PMID: 7489274. ArticlePubMed
  • 5. Foss RD, Ellis GL. Myofibromas and myofibromatosis of the oral region: a clinicopathologic analysis of 79 cases. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2000; 89: 57–65. PMID: 10630943. ArticlePubMed
  • 6. Brierley DJ, Khurram SA, Speight PM. Solitary myofibroma of the adult mandible: a case report. Oral Surg Oral Med Oral Pathol Oral Radiol 2013; 115: e40–e43. PMID: 23021917. Article
  • 7. Oliver RJ, Coulthard P, Carre C, Sloan P. Solitary adult myofibroma of the mandible simulating an odontogenic cyst. Oral Oncol 2003; 39: 626–629. PMID: 12798407. ArticlePubMed
  • 8. Sedghizadeh PP, Allen CM, Kalmar JR, Miloro M, Suster S. Solitary central myofibroma presenting in the gnathic region. Ann Diagn Pathol 2004; 8: 284–289. PMID: 15494935. ArticlePubMed
  • 9. Ramadorai A, Rajsekaran A, Narayanan V. A case report of solitary, intraosseous, adult-onset myofibroma of the mandible. J Maxillofac Oral Surg 2010; 9: 280–283. PMID: 22190806. ArticlePubMedPMC
  • 10. Chang JY, Kessler HP. Masson trichrome stain helps differentiate myofibroma from smooth muscle lesions in the head and neck region. J Formos Med Assoc 2008; 107: 767–773. PMID: 18926943. ArticlePubMed
Fig. 1
Radiologic evaluations. (A) Facial bone computed tomography reveals a cyst-like lesion in the right mandibular alveolar process of the first molar. (B) During surgery, the first molar is extracted and a solid, firm mass is found under the molar (arrow).
Fig. 2
Microscopic and special staining features. (A) The tumor is highly cellular and exhibits an interlacing fascicle pattern with slit-like blood vessels. Neither atypical mitosis nor necrosis are detected. (B) A high-power view reveals spindle cells with elongated nuclei and blunted-ends closely resembling smooth muscle tumors. (C) Masson's trichrome stain shows plenty of collagenous stroma (blue stain) intermingled with myofibroblastic cells (red stain).
Fig. 3
Immunohistochemical stains. (A) Smooth muscle actin is expressed diffusely and strongly in spindle cells. (B) CD34 demonstrates hemangiopericytoma-like vascular pattern. (C) Vimentin is diffusely and strongly positive in all around the tumor cells.

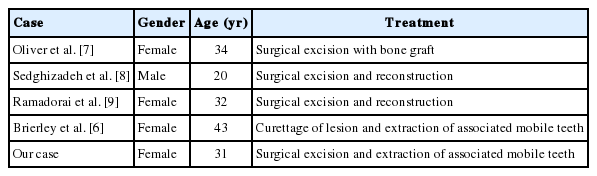

Table 1.
Clinicopathologic features of five cases of solitary myofibroma of the adult mandible
Case Gender Age (yr) Treatment
Oliver et al. [7] Female 34 Surgical excision with bone graft
Sedghizadeh et al. [8] Male 20 Surgical excision and reconstruction
Ramadorai et al. [9] Female 32 Surgical excision and reconstruction
Brierley et al. [6] Female 43 Curettage of lesion and extraction of associated mobile teeth
Our case Female 31 Surgical excision and extraction of associated mobile teeth
